Two Color Pad Printer with index table

Electric Pad Printing Equipment

Our FC-161ANS model pad printer leads the way in energy conservation, saving an impressive 79.74% of electricity. But that's not all. We further incorporate laser positioning technology to ensure mechanical positioning accuracy of 0.01mm or less. Experience the difference of the FC-161ANS pad printing machine - a perfect combination of performance, sustainability, and professional excellence.

FC-162ARC-X

FC-162ARC-X

Two Color Pad Printer with index table

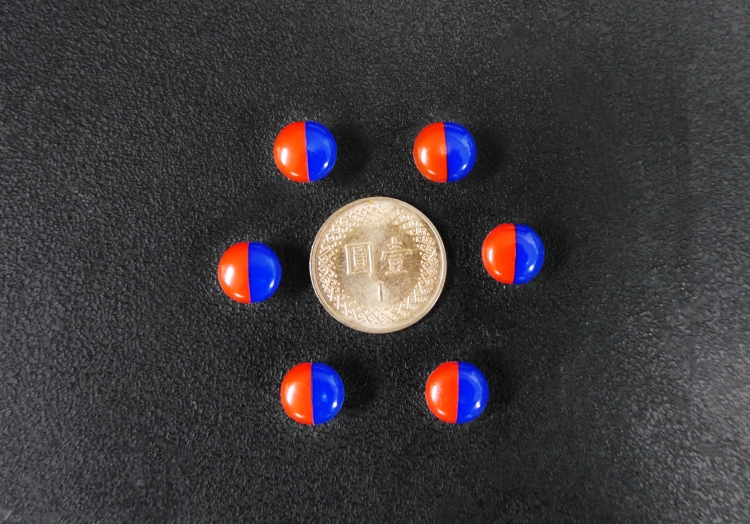

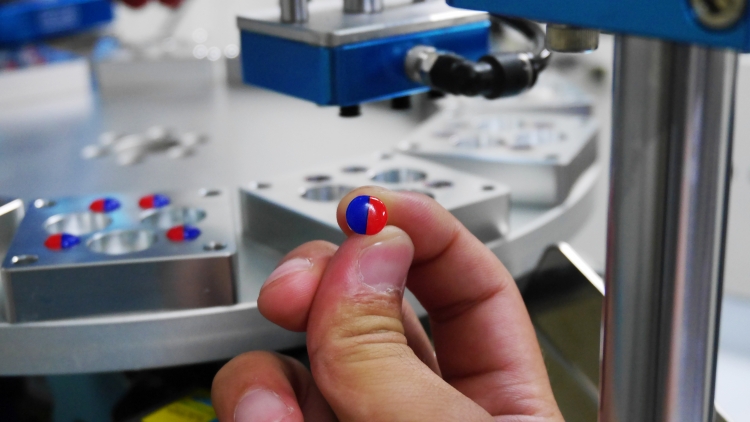

This index table pad printing machine can Print on quite small products in diameter about 1 cm, dual color printing, accurate color registration! the pad printing machine is equipped with automatic suction discharging function, automatic error detection system, and PLC control panel, which is easy to operate. combined with the smart factory APP that assist you to implement production management goals through synchronous automation monitoring.requirements.

Add RFQ RFQ results

Product Info

2-Color Pad Printer with index table-FC-162ARC-X

(Auto-discharge suction fixture)

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring. no matter what you’d like to print, Fine Cause’s professional team can provide customized designs according to your.

■ Indexing table pad printer feature :

Color touch panel, built-in three different languages- Chinese (traditional), English, Indonesian
Exclusively Developed Small index table 2-Color ink cup pad Printer
Able to Add Special Clip Jigs (Based on Customers request )
Fixed material by suction function
Automatic discharge suction fixture
Controlled by PLC digital microcomputer, auto detector system-malfunction
display, convenient for repair
Embedded lighting equipment
65536 Color TFT Touch Panel
Built-in intelligent software which show column chart of past 30 days on the screen.

▼ Product

▼ Product

Specifications

Model	FC-162ARC-X
Color	2
index Plate size(mm)	330
Cycles/hr	600~1200 pcs
Machine Size (cm)	L:80 W:50 H:140
Weight	145KG
Pressure (kg/cm2 psi)	4~6
Power (A) Ampere	10
Voltage (V)	220V
Max. Printing Area (mm)	55
Max. Height of Printed Object (mm)	180mm
Height - Pad Stand to Steel Plate (mm)	100
Max. Steel Plate Size (mm)	L:200 W:90 H:10
