UV-LED Conveyor Curing Machine

This UV-LED conveyor curing machine is applicable to various object heights. The angle of LED light sets is rotatable. 3 LED light sets can irradiate large area centerly. 3 LED light sets can irradiate small area respectively. 【Dry immediately after irradiation; no color fading after curing】~

Add RFQ RFQ results

Product Info

UV-LED Conveyor Curing Machine-C00000006

Turn on the power by the control switch.
- The speed can be adjusted after the conveyor belt switch is opened.
- All of the controllers are marked in Mandarin, which is easy to control separately. And the timer is separated as well.
- The LED light source can be switched independently. (2 independent controls in total: middle/left + right)
Two-way conveyor belt
- The speed can be adjusted after the conveyor belt switch is opened.
Running forward and reverse can be chosen. Namely, two-way directions can be entered and exited. The operation is convenient.

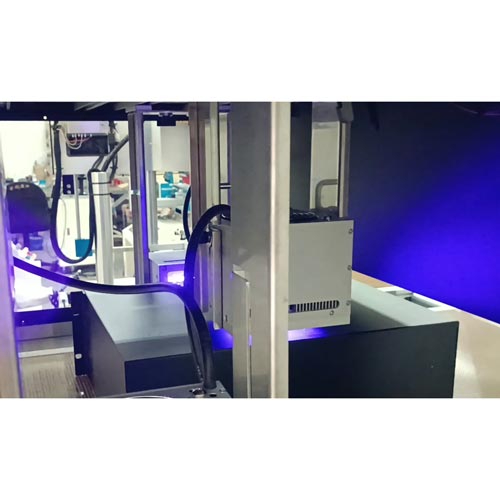

LED light sets
- The irradiation range of the 3 light sets is 10X10cm each.
- Up, down, left, and right positions can be moved and adjusted.
- The LED light set can go up and down and the angle is rotatable.
- The LED light set is detachable. The LED wavelength is 395nm.
Change light holder
- The light holder is detachable. The light holders of different sizes can be replaced.
- The light holder can be customized according to the height of object.
Adjustable height for light shelter
- The LED light shelter is adjust according to the height of object.

↑ Be applicable to various object heights.
↑ The LED light sets can be adjusted in up, down, left, and right position.
↑ The LED light set angle is rotatable.
↑ Can irradiate large area centerly.
↑ Can irradiate small area respectively.

Specifications

Model / Specification	C00000006
Customized Specifications	60cm length LED chamber + 50cm length each in front and rear working areas, total in 160cm length
	There are 3 sets of LED light sets. The locations are middle, left, and right. LED wavelength is 395 nm.
	The LED chamber height is about 45cm. Adjust at 15 cm above the conveyor belt and the range is up and down 5cm.
	The maximum width of the LED chamber entrance is about 65cm. The left and right adjustable range is about 10~15cm inward from both sides.
	The LED light sets can be divided into middle and left + right to open independently.
Machine Specifications	Voltage: 100-240VAC 50/60HZ
	Light shelter adjustable height range: 10-150mm
	Conveyor adjustable speed range: 50-5000mm/min (displayed in rpm)
	Direction of the conveyor belt: adjustable in two-way directions
	Size (LED chamber): L600 x W1050 x H450 mm
	Size (conveyor): L1600 x W1050 x H950 mm
