Flat screen printer by large-sized servo motor
Flat screen printer by large-sized servo motor
Product Info
▲ There is also optional devices for independent human machine interface .
Flat screen printer by large-sized servo motor-FA-1000TSN
This flat surface screen printer imported to industrial I.O.T., Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your silk screen printer.
■ Feature:
-
This semi automatic screen printer adopts servo motor design. Using precise servo motor, ball screw and linear guide for ink scraping, movement stable, printing more accurate.
-
It's different with pneumatic cylinder type screen printer, will not generate ink leaking problem which affected by the air pressure and the left and right anti-collision buffers.
-
This semi automatic screen printing equipment adpots 7.0 inches multicolor color touch screen with 65536 colors TFT;The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which silk screen is used, and it will automatically stop and display inform when the number is arrives.
-
PLC Programmable Logic Controller easy to add and modify function
-
-
Servo ink Scraping System provide the entire scraping process able to control within a fine tolerance.
-

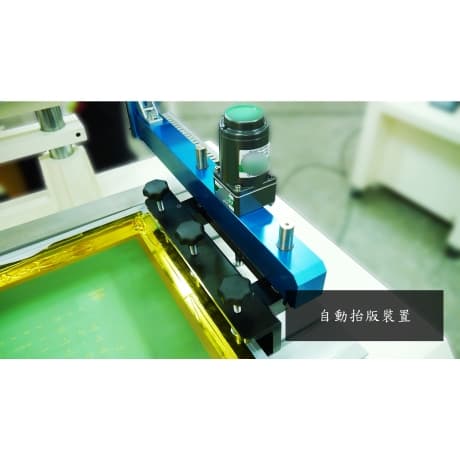

Silk screen printing stencil frame holder left-right moving by linear guide, smoothness and more precision than T-track.
-
Precise CNC machining assembly bushing up-down system attain high precision, easy to move up and down, stable and quiet.
-
Pneumatic Squeegees up down station
-
pressure adjustable
-
Easy to positioning squeegees, without height-offset or ink flow out problem comparing to traditional mechanism
-
More convenience to clean the silk screen
-
-
This semi automatic screen printing machine adopts a magnetic squeegee clip (Patent No. M390871) makes the squeegee position can be slided easily and is simple to adjust and disassemble.
- Flat surface screen printng machine is able to install with disc divider, suction system, pressing positioning, pushing positioning, automatic load & unload mechanism, industrial cameras, actuators and other peripheral institutions.
■ Suitable For:
Screen printing, Conductive Silver Paste printing solder paste printing, high precision request printing, etc.
FineCause is professional silk screen printing machine, servo screen printing machine, semi-auto silk screen printing machine and automatic silk screen printing machine manufacturer.
FineCause have imported Servo motor ink scarping system in 2016, component production adopted extrude integrally molded. Currently have the best price among whole Taiwan servo motor screen printer manufacturers.
FineCause silk screen printer already have a foothold and good reputation in Taiwan. We’re ready for worldwide market and have a professional team to provide service at any time, please feel free to contact us if you’re interest to our machine or be our distributor.
Specifications
Model | FA-1000TSN |
---|---|
Color | 1 |
Cycles/hr | 300~600 |
Pressure(kg/cm2 psi) | 4~6 |
Power (A)Ampere | 5A |
Voltage (V) | 220V |
Platform Size(mm) | 700*1000 |
Max Printing Area(mm) | 450*900 |
Max. Height of Printed Object (mm) | 300 |
Platform Moving Distance(mm) | 1000 |
Platform Height (mm) | 0~150 |
Max. Screen Plate Size (cm) | 80*130 |
Screen Plate Trimming Distance (mm) | ±25 |
Platform Trimming Distance (mm) | ±8 |
Platform Tilt Angle | 10/50 |
Scraping Stand Lift Distance(mm) | |
Machine Size (cm) | L:1400 W:1000 H:2000 |
Weight | 520 KG |
