FA-300 400TGN Electric Desktop Screen Printing Machine (Simple Type)

The full-electric screen printing machine that integrates energy savings, time efficiency, and ink conservation~

Features of electric screen printing machine

All-electric design, plug-and-play operation.

• Fully electric operation, no air pressure required.

• Low power consumption of only 70W, energy-efficient.

• Certified with the FINECAUSE energy-saving label, saving approximately 80% of electricity compared to traditional pneumatic screen printing machines.

• Support a voltage range of AC100V~240V, offering wider compatibility.

Operation and control

The printing speed can be variably controlled.

• The parameter settings are digitalized, and 30 sets of formulas can be stored.

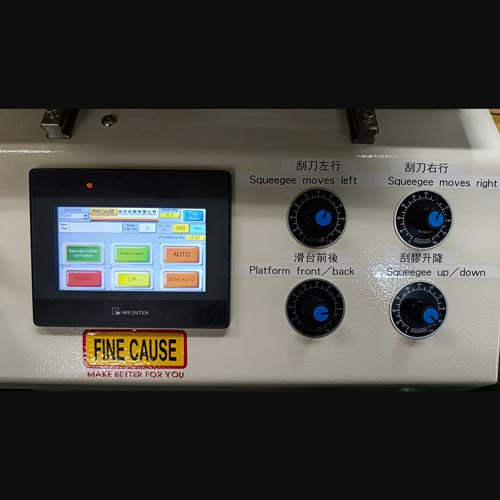

• The 4.3" color TFT touchscreen supports 5 languages: Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• The signal indication panel displays the status of the input and output signals, making operation clear at a glance.

• The screen printer has an abnormal alarm displayed in a scrolling marquee, making it easier for production line personnel to quickly troubleshoot the issue.

• The screen stencil and squeegee usage count can be set; when the set value is reached, the machine will automatically stop and a scrolling marquee will notify.

• With the PLC (Programmable Logic Controller), adding or modifying functions is easy.

• The built-in smart bar chart provides a clear overview of productivity, operating time, and production speed for the past 30 days.

Printing advantages

The design does not require the screen stencil to move up and down.

• Slower ink evaporation speed, saving ink.

• Reduces the possibility of screen mesh clogging.

• Lower the risk of dust and lint adhesion.

Squeegee system

Electric squeegee set lifts linearly.

• Eliminates the issue of height misalignment caused by traditional manual adjustments

• Prevents ink from spilling over the screen stencil due to manually lifting the squeegee.

• Makes cleaning the screen stencil more convenient.

Precise adjustment and convenient operation

Multiple adjustment functions

• The platform is adjustable in X and Y axes, as well as in angle.

• The screen stencil can be adjusted for height according to the object.

• The platform can move forward and backward, making it easier for operator to place or remove printed items.

Magnetic squeegee clip (Patent No. M390871).

The magnetic squeegee clip allows for adjustment of the squeegee position and quick assembly/disassembly.

Slide platform and operation time control.

• The back-and-forth sliding platform movement speed is adjustable, enhancing productivity.

• The left and right movement speeds can be adjusted individually.

• Adjustable squeegee and flood bar operation times can increase productivity and improve print quality.

• The screw holes on the platform make it easy to install jig.
