Large image pad pad printer
Large image pad pad printer
Product Info
▲This Vedio is largest 130mm Ink-Cup Pad Printer
pad printer by one-color ink cup /pad printing machine-FC-211DNC
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
Pad printing machine Using 130mm Ink Cup. Suitable for Big Size Printing or Whole Side Cover Printing
-
Large Pad for Whole Side Cover Printing
-
L-Shape Casting Structure, Strong and Easy to Operate
-
The pad printer uses exclusive Ink-Scraping System w/Adjustable Pressure
-
Mirco-Computer Auto Debugging. Convenient and Easy Maintenance
-

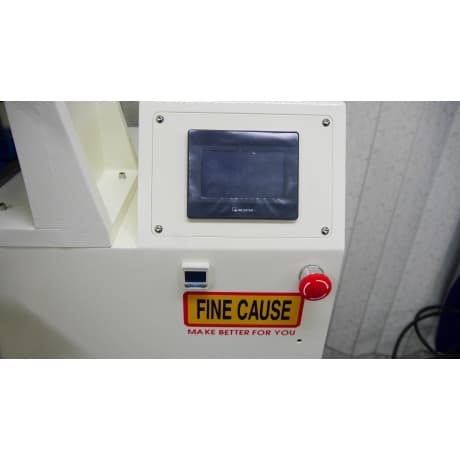

The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
Specifications
Model | FC-211DNC |
---|---|
Color | 1 |
Cycles/hr | 600~800 Pcs |
Machine Size (cm) | L:80 W:70 H:150 |
Weight | 125KG |
Pressure (kg/cm2 psi) |
4~6 |
Power (A) Ampere |
10 |
Voltage (V) | 110-220V |
Max. Printing Area (mm) |
Ø110 |
Max. Height of Printed Object (mm) |
180mm |
Height - Pad Stand to Steel Plate (mm) |
100 |
Max. Steel Plate Size (mm) |
L:370 W:170 H:10 |
