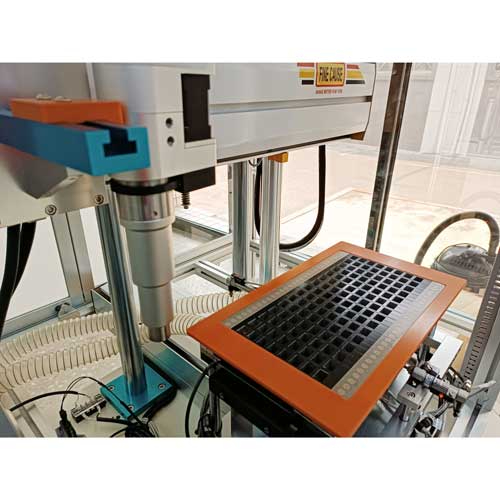

Servo X-Y Table for Atmospheric Plasma Machine Feeding Module + Floorstanding Cover-FA-400F2-KY
-
Automatic positioning after feeding.
-
Automatic air suction, objects will be lifted to do plasma treatment.
-
The tray exits automatically after the plasma treatment is completed.
-
Without the object, the plasma treatment will automatically stop.
-
Adopt 7" HMI (65536 color TFT touch screen) and built-in 5 languages, traditional Chinese, English, Indonesian, Vietnamese,and Thai.
-
Production history function: built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.
-
With Abnormality alarm display and abnormality history table, the production personnel is able to eliminate the abnormalities quickly.
-
30 sets of parameter can be memorized, which can input and output freely.
-
With I/O (input/output), each sensor location is shown in whole area of the machine.
-
With electronic air pressure sensing, the device will alarm automatically for insufficient air pressure.
-
Adopt PLC, which is easy to add or modify functions.
-
-
X-Y servo table with jacking module and air blower makes the SD card not be blown away during plasma processing.
-
The start position and end position of the plasma nozzle can be set freely.
-
Set the start and end locations and input the number of rows and columns. Then the array will be automatically calculated and generated. After that, the operation can start.
-
Processing mode: continuous process or intermittent process
-
Processing direction: one-way or bidirectional
-
Specifications
Model: | FA-400F2-KY |
---|---|
Machine Size | 128*105*188 cm |
Platform: | Servo Table |
Suction Device: | Air Blower |
Customized Module: | Mirco SD Card Feeding Module |
Touch Screen: | 7" 65536 Color TFT Touch Screen |
Net Weight: | 340 kg |
