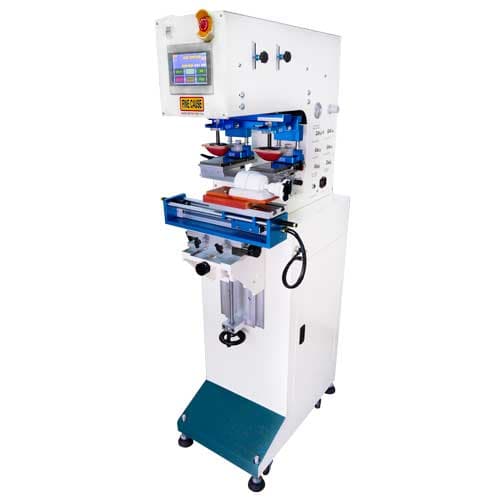

Pad printing machine by 2-color ink-cup w/x-y slide table-FC-162ACC
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features:
-
A thermostatic printing system can be added to achieve a more ideal printing effect by controlling the ink temperature.
-
After the pad printing machine is equipped with a thermostatic printing system, the cliche temperature can be controlled. By increasing the ink temperature, the complete ink deposit can be maintained constantly. Printing conditions and quality are not affected by external ambient temperature. Let the printing pad 【ink absorption capacity】 and 【ink deposit capacity】increase.
-
Improve the issue of burrs and ink picks!
-
-
Equipped with a rotary mechanism jig to automatically turn the object over for printing. It can automatically turn the front and back sides to do printing, which is accurate and fast. The productivity is increased as well.
-
The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
adjust the pressure of sealed Ink cup -Scraping
-
Embedded lighting equipment
-
Malfunction by Screen Display
-
Adjustable Ink-Cup Pressure
-
Electronic Air Pressure Sensor
-
Adjustable Steel Plate Base. Able to Change Angles front and back, left to right
-
Easy to add additional devices
-
Ex. slide rail, round plate, oval plate, suction function, flip function, rotate function,Hot air device, and blow dryer shelf, etc
-
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
-
Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
■ Suitable For : Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.
Specifications
Model | Color | Steel Plate (mm) | Capacity/hr | Dimension (cm) | Net W. |
---|---|---|---|---|---|
FC-162ACC | 2 | 90*200 | 800~1500 Pcs | L:80 W:50 H:140 | 125 Kgs |
Model/Spec. | FC-161BNC | FC-161DNC Mini | FC-161ANC | FC-161CNC Horizontal Scraping |
FC-162ACC |
---|---|---|---|---|---|
Single-Color | Single-Color | Single-Color | Single-Color | Two-Color | |
Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Ink-Cup Pad-Printer-60Ø | |
Air Pressure(kg/cm2 psi) | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
Power Consumption(A) | 3 | 3 | 3 | 3 | 3 |
Voltage (V) | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V | 110V & 220V |
Platform Size(mm) | 60*110 | 80*220 | 80*220 | 80*220 | 80*220 |
Max. Print Area(mm) | Ø50 | Ø50 | Ø50 | 170*50 | Ø50 |
Max. Height ofPrinted Object(mm) | 120 | 180 | 180 | 180 | 180 |
Platform Moving Distance(mm) | 125 (Front/Back) | 125 (Front/Back) | 125 (Front/Back) | 160 (Left to Right) | 125 (Front/Back) |
Height -Pad Stand to Steel Plate(mm) | 94 | 94 | 100 | 100 | 100 |
Max.Steel Plate Size(mm) | 90*200 | 90*200 | 90*200 | 80*350 | 90*200 |
