One color rotating table pad printer

Electric Pad Printing Equipment

Our FC-161ANS model pad printer leads the way in energy conservation, saving an impressive 79.74% of electricity. But that's not all. We further incorporate laser positioning technology to ensure mechanical positioning accuracy of 0.01mm or less. Experience the difference of the FC-161ANS pad printing machine - a perfect combination of performance, sustainability, and professional excellence.

FC-161ARC-8

FC-161ARC-8

One color rotating table pad printer

rotating table pad printer has 4 nozzle with air to reduce printing drying time. Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.

Add RFQ RFQ results

Product Info

One color rotating table pad printer(Index Table for 8 station)FC-161ARC8

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

This indexing table pad printing machine adpots 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
- Input & output full display
- Abnormal warning display, convenient for quickly eliminate abnormalities
- Digital pressure sensor, automatic alarm display for insufficient air pressure
- Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
PLC Programmable Logic Controller easy to add and modify function

Rotating table pad printer has Independent pressure adjustable ink cup scraping system(Patent No. M311585)with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.
Embedded lighting equipment
Ink cup pressure adjusted
Electric air pressure sensor
4 nozzle with air to reduce printing drying time

■ Fine Cause Pad Printer

Pad printer is one of the main series in Fine Cause's product line. In the past few years, we have been improving our production quality that made our products stand out among peers and advance forward to globalization. There are two major types of our pad printer: Ink Cup Pad Printer (Semi automatic pad printer/Custom pad printing machines) .

FineCause pad printer is able to expand automation equipment according to the material to increase production capacity.

The best pad printing machine in FineCause

~Looking for pad printing machine inquire to FineCause

FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.

Printing color：black

Steel plate size(cm)：L 90 / W 200 / H 10

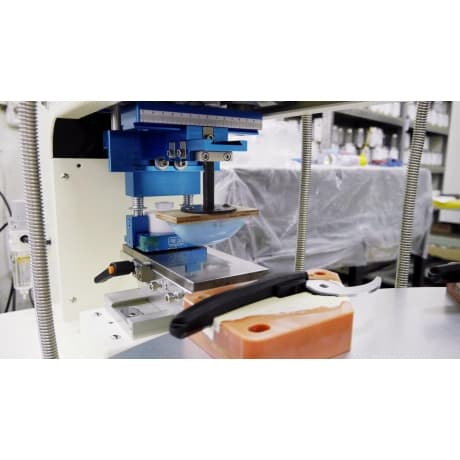

▼Product(scissors):

Specifications

model	FC-161ARC8
Color	1
Index table (cm)	800mm
Cycles/hr	1200~1800 pcs
Machine Size (cm)	L:140 W:80 H:135
Weight	185KG
Pressure (kg/cm2 psi)	4~6
Power (A) Ampere	20
Voltage (V)	220V
Max. Printing Area (mm)	55
Max. Height of Printed Object (mm)	180mm
Height - Pad Stand to Steel Plate (mm)	100
Max. Steel Plate Size (mm)	L:200 W:90 H:10
