Two Color Ink Cup Pad Printer w/X-Y Slide table and Rotating fixture
Two Color Ink Cup Pad Printer w/X-Y Slide table and Rotating fixture
Product Info

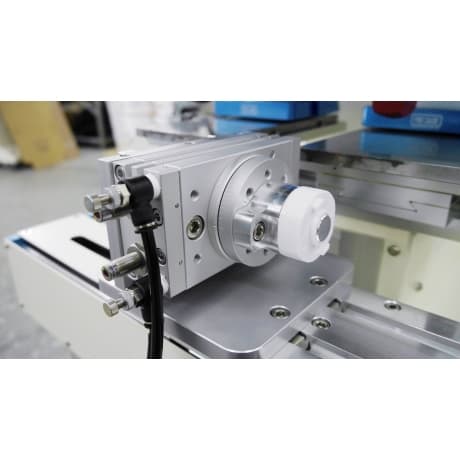

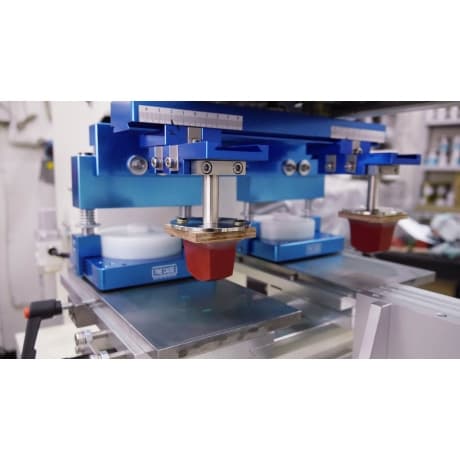

FC-192ACC 2-Color Ink Cup Pad Printer w/X-Y Slide table and Rotating fixture( Rotating fixture was customize)
Slide type two-color pad printing machine, the advantage is that only a fixture can be installed to produce, and a index or conveyor is required to use CNC processing multiple sets of consistent fixture.
It is especially suitable for users who do not have a small amount of production. The cost of the machine is also lower than that of a index or conveyor, but the capacity is lower than that of a index or conveyor machine,it’s about 720 ~ 1200PCS / hr.
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features:
-
The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:Traditional Chinese, English, Indonesian, Vietnamese and Thai.
-
The pad printing machine uses Exclusive Patented Adjustable Ink-Scrape Mechanism (Patent No. M311585)
-
Embedded lighting equipment
-
Malfunction by Screen Display
-
Adjustable Ink-Cup Pressure
-
Electronic Air Pressure Sensor
-
Adjustable Steel Plate Base. Able to Change Angles front and back, left to right
-
Easy to add additional devices
-
Ex. slide rail, round plate, oval plate, suction function, flip function, rotate function, and blow dryer shelf, etc
-
■ Suitable For :
Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.
Specifications
Model | FC-192ACC |
---|---|
Color | 2 |
Plate size(mm) | L:240 W:120 H:10 |
Cycles/hr | 800~1500 Pcs |
Machine Size (cm) | L:80 W:50 H:140 |
Weight | 125 Kgs |
Pressure (kg/cm2 psi) |
4~6(kg/cm2 psi) |
Power (A) Ampere |
3A |
Voltage (V) | 110V |
Max. Printing Area (mm) |
Ø75 |
Max. Height of Printed Object (mm) |
180 |
Height - Pad Stand to Steel Plate (mm) |
94 |
Max. Steel Plate Size (mm) |
120*240 |
