Pad Printer for Accurate Printing
Pad Printer for Accurate Printing
Product Info
Pad printer-Finecause Pad Printer-FC-161ANC

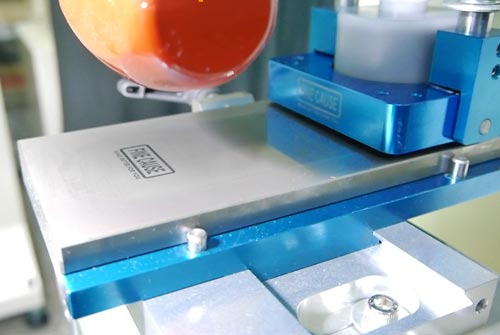

Equip with 60mm diameter Ink cup, forward and backward precise CNC machining assembly bushing, improve machine movement accuracy.
pad printer with thermostatic system is able to improve production efficienc. can keep the temperature constant, which make the printing quality stable. can make pad printing fast, stable and accurate. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
▲ Thermostat System of pad printer
▲ The pad printer with fully upgraded to 7-inch color touch panel screen and PLC controller.
▲ Fine Cause's pad printer imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
FC-161ANC-Pad Printer for Accurate Printing
■ Key Features of Finecause Pad Printer:

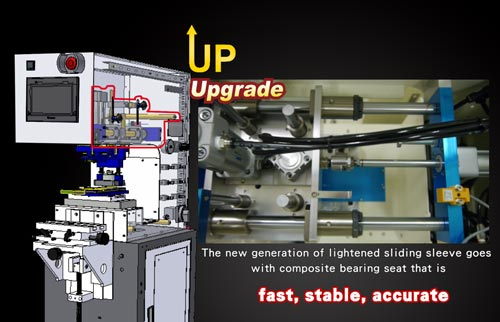

Finecause’s pad printer is designed for high precision and efficiency. Featuring a new-generation lightened sliding sleeve combined with a composite bearing seat, this pad printer delivers fast, stable, and accurate printing performance.
-
Enhanced stability, airtightness, and precision for consistent high-quality output
-
Clean and tidy ink pick-up and deposit process—no residual ink trace
-
Upgraded 7-inch full-color touch panel with PLC controller for intuitive operation
-
Multilingual HMI (English, Indonesian, Vietnamese, Thai, Traditional Chinese)
-
Real-time smart production dashboard: view productivity, operating time, and speed
-
Compatible with the Finecause App: check production capacity reports anytime, anywhere
-
Built-in electronic air pressure sensing system ensures safety and error detection
-
Automatic alarm and text alert system when air pressure drops or errors occur
-
Production time, pad usage, and steel plate (cliché) count can be pre-set
-
Automatic stop function when preset limits are reached
This pad printer also features intelligent ink control:
-
Programmable ink pick-up count and pressure duration for increased ink thickness—ideal for fabrics
-
Durable magnetic ink cup collar paired with a doctoring ring ensures clean and leak-free operation
-
Patent No. M311585 – Adaptive doctoring mechanism for precise ink pressure adjustment
-
Tool-free assembly and maintenance of the ink cup system
-
Advanced pad motion system:
-
Adjustable pad holder pressure and movement speed
-

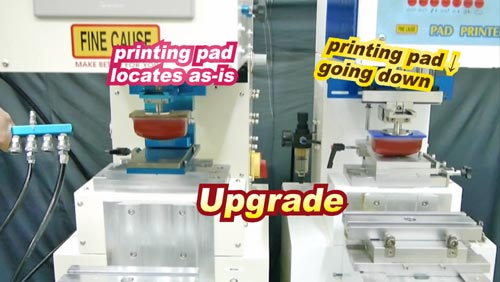

Air pressure design prevents pad from falling even if not manually removed—protecting pad integrity
Not sure how to choose a pad printer? [Click here to learn more]
■ Applications
This pad printer is suitable for a wide range of industries and substrates:
-
Toys
-
Stationery
-
Jewelry
-
Watch surfaces
-
Electronic products
-
Switches & buttons
-
Metal (finished/semi-finished) parts
-
Ceramic and glass products
-
Uneven surfaces
Optional precision indexing plate allows for easier material loading and unloading, and can be paired with automated peripherals to enhance production capacity.
In addition to pad printing machines with 60Ø ink cups, there are also models with 90Ø and 130Ø ink cups.
Click on the link to see various standard pad printer(semi automatic pad printer):
https://www.finecause.com/products/category1
Click on the link to see various customized pad printers:
https://www.finecause.com/products/category1/customized-pad-printing-machines
Click on the link to see various automatic pad printer:
https://www.finecause.com/products/category1/automatic-pad-printing-machine
Click on the link to see optional equipments for pad printer:
https://www.finecause.com/products/category1/choose
Specifications
Model | Color | Steel Plate (mm) | Capacity/hr | Dimension (cm) | Net W. |
---|---|---|---|---|---|
FC-161ANC | 1 | L:200 W:90 H:10 | 1200~1800 Pcs | L:75 W:45 H:135 | 105 Kgs |
Model/Spec. | FC-161BNC | FC-161DNC Mini | FC-161ANC | FC-161CNC | FC-191ANC |
---|---|---|---|---|---|
Single-Color | Single-Color | Single-Color | Horizontal Scraping | Single-Color | |
Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Single-Color | Ink-Cup Pad-Printer-90Ø | |
Ink-Cup Pad-Printer | |||||
Air Pressure | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
Power Consumption (A) |
3 | 3 | 3 | 3 | 3 |
Voltage (V) |
110-220V | 110-220V | 110-220V | 110-220V | 110-220V |
Platform Size (mm) |
60*110 | 80*220 | 80*220 | 80*220 | 80*220 |
Max. Print Area (mm) |
Ø50 | Ø50 | Ø50 | 170*50 | Ø75 |
Max. Height ofPrinted Object (mm) |
120 | 180 | 180 | 180 | 180 |
Platform Moving Distance (mm) |
125 (Front/Back) |
125 (Front/Back) |
125 (Front/Back) |
160 (Left to Right) |
125 (Front/Back) |
Height -Pad Stand to Steel Plate (mm) |
94 | 94 | 100 | 100 | 100 |
Max.Steel Plate Size (mm) |
90*200 | 90*200 | 90*200 | 80*350 | 120*240 |
