Pad printing machine(Horizontal scraping single-color ink cup pad printer)FC-161CNC
FC-161CNC is designed so that it can enlarge the printed area. It is the kind of machine which operate from the left side to the right side. Standard specification of maximum printed area range is 170*50mm. In addition, it can be customized by client applications.
Please notice that FC-161CNC belongs to small-sized printer range. If using the rubber cylinder b ore 50mm, the size and the hardness of rubber should be checked. It will affect the rubber cylinder bore pressing down.
■ Feature :
-
Adopt Japanese SMC rodless cylinders, ensuring high quality.
-
Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
-
Client can choose paid add additional peripheral devices. For example, suction function, rotate function, flip function and blow dryer shelf etc.
-
The pad printer is fully upgraded with a 7-inch color touch panel screen and PLC controller. Good visual effect, easy operation, easier and more convenient to use. The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
-
Horizontal Ink Cup Scraping
-
Patented Ink-Scraping Device. Adjustable Ink-Scraping Pressure
-
Embedded Cost Saving Light Bulb
-
Exclusive Designed Program. Smooth and fast Operation
-
Micro Computer Control. 4-Phase Setup
■ Suitable For :
Products that need large size printing. For instance, Golf Ball (Need print around the ball) (Print Size: 55X160MM).
Pad printer is one of the main series in Fine Cause's product line. In the past few years, we have been improving our production quality that made our products stand out among peers and advance forward to globalization. There are two major types of our pad printer: Ink Cup Pad Printer (Standard Pad Printing Machines/Customized Pad Printing Machines) Open-tray Pad Printer.
FineCause pad printer is able to expand automation equipment according to the material to increase production capacity.
The best pad printing machine in FineCause
~Looking for pad printing machine inquire to FineCause
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, semi-auto pad printing machine and automatic pad printing machine manufacturer.
fine cause manufactures pad printer,semi-auto pad printer,pad printer, pad printing, pad printer machine, finecause Pad Printer , printing press, Print Equipment, product printing,automatic pad printer,how much is a pad printer,pad printing machine cost ,pad printing process,pad printing equipment,pad printing techniques,pad printing principles,manufacturer of pad printing equipment,finecause,mechanism of pad printers,pad printing equipment,pad printing techniques,pad printing principles,manufacturer of pad printing equipment
Specifications
Model | Color | Steel Plate (mm) | Capacity/hr | Dimension (cm) | Net W. |
---|---|---|---|---|---|
FC-161CNC | 1 | L:80 W:390 H:10 | 900~1200 Pcs | L:63 W:52 H:130 | 110 Kgs |
Model/Spec. | FC-161BNC | FC-161DNC Mini | FC-161ANC | FC-161CNC | FC-191ANC |
---|---|---|---|---|---|
Single-Color | Single-Color | Single-Color | Horizontal Scraping | Single-Color | |
Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Ink-Cup Pad-Printer | Single-Color | Ink-Cup Pad-Printer-90Ø | |
Ink-Cup Pad-Printer | |||||
Pressure(kg/cm2 psi) | 4~6 | 4~6 | 4~6 | 4~6 | 4~6 |
Power (A)Ampere | 3 | 3 | 3 | 3 | 3 |
Voltage (V) | 110-220V | 110-220V | 110-220V | 110-220V | 110-220V |
Platform Size(mm) | 60*110 | 80*220 | 80*220 | 80*350 | 80*220 |
Max. Print Area(mm) | Ø50 | Ø50 | Ø50 | 170*50 | Ø75 |
Max. Height ofPrinted Object(mm) | 120 | 180 | 180 | 180 | 180 |
Platform Moving Distance(mm) | 125 (Front/Back) | 125 (Front/Back) | 125 (Front/Back) | 300 (Left to Right) | 125 (Front/Back) |
Height -Pad Stand to Steel Plate(mm) | 94 | 94 | 100 | 100 | 100 |
Steel Plate Size(mm) | 200*90 | 200*90 | 200*90 | 390*80 | 240*120 |
Videos
-
Instructions - Ink Cup Installation
Instructions - Ink Cup Installation -
Pad printer Clean Ink Cup tutorial
Pad printer Clean Ink Cup tutorial -
Instructions -Pad printer machine Knife Ring Tutorial
Instructions -Pad printer machine Knife Ring Tutorial -
Magnetic Toolbox-(Magnetic Containers)
Magnetic Toolbox-(Magnetic Containers) -
Corona Machine For Curved Surfaces
Corona Machine For Curved Surfaces -
Fine Cause Prints Your Life
Fine Cause Prints Your Life -

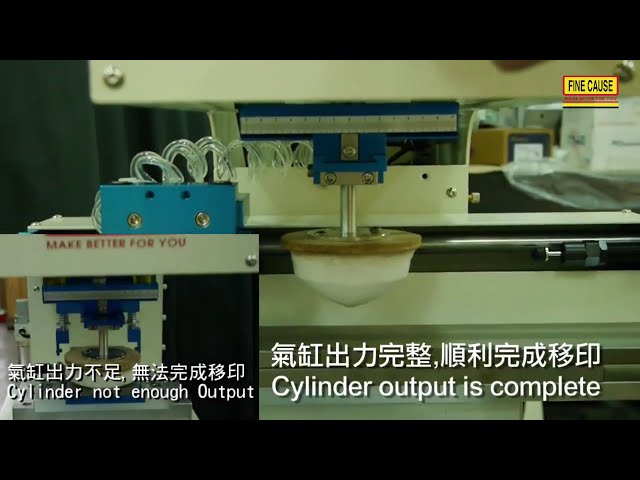

FC-161ANC vs FC-161CNC 【Pressure test by different pneumatic cylinder】
